Landscape Photography
The 10mm perspective allows photographers to create expansive compositions with dramatic foregrounds and broad environmental context.
Canon RF | L-Series Ultra-Wide Zoom

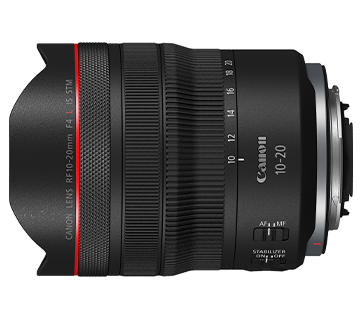

Canon RF10-20mm F4L IS STM | Amplify Your Perspective
The Canon RF10-20mm F4L IS STM is an ultra-wide L-series zoom designed to capture an exceptionally broad perspective without the bulk traditionally associated with extreme wide-angle lenses. Covering 10-20mm, it gives photographers the ability to fit dramatically more into the frame while maintaining Canon’s L-series optical approach.
With 5 stops of in-lens Optical Image Stabilization, up to 6 stops with compatible cameras, a compact 570g body and quiet leadscrew-type STM autofocus, the lens is designed for landscape, architecture, interiors, travel, astrophotography and video applications where an expansive field of view matters.
10-20mmUltra-Wide Zoom
F4Constant Aperture
5 StopsOptical IS
570gApprox. Weight
Jump to What Matters
At a Glance
Canon RF10-20mm F4L IS STM Key Highlights
- 10mm ultra-wide focal length
- 10-20mm full-frame zoom range
- Constant F4 maximum aperture
- Canon L-series optical design
- Up to 5 stops of in-lens Optical IS
- Up to 6 stops with compatible cameras
- Compact 570g construction
- Leadscrew-type STM autofocus
- Double-sided aspherical front lens element
- Super UD and UD lens elements
- SWC and ASC anti-reflective coatings
- Dust- and drip-resistant construction
- Fluorine-coated front element
- Customisable Lens Function button
- Rear gelatin filter holder
Ultra-Wide Perspective
10mm Goes Beyond Conventional Wide-Angle Photography
The defining characteristic of the RF10-20mm F4L IS STM is its 10mm ultra-wide focal length. Canon describes it as its widest lens among interchangeable lenses for cameras compatible with a 35mm full-frame sensor, excluding fisheye lenses, based on its stated research date of 10 October 2023.
At 10mm, the lens can capture an exceptionally broad scene, making it particularly useful when the photographer wants to communicate scale, depth and spatial relationships rather than simply record a conventional view.
Landscapes
Capture expansive foregrounds, dramatic skies and broad environmental scenes.
Capture expansive foregrounds, dramatic skies and broad environmental scenes.
Architecture
Fit large structures into confined spaces while emphasising perspective and scale.
Fit large structures into confined spaces while emphasising perspective and scale.
Interiors
A 10mm viewpoint can help show more of a room when working from a restricted shooting position.
A 10mm viewpoint can help show more of a room when working from a restricted shooting position.
Travel
Capture large landmarks and surrounding environments without stepping far back.
Capture large landmarks and surrounding environments without stepping far back.
Astrophotography
The ultra-wide field of view is useful for compositions combining foreground elements with large areas of sky.
The ultra-wide field of view is useful for compositions combining foreground elements with large areas of sky.
Creative Perspective
Move close to foreground subjects and use the extremely wide field of view to exaggerate spatial relationships.
Move close to foreground subjects and use the extremely wide field of view to exaggerate spatial relationships.
10mm Perspective
Canon states that compared with the RF14-35mm F4L IS USM, the 10mm end can capture approximately twice as much area. This illustrates how dramatically the field of view changes when moving from 14mm to 10mm.
L-Series Optical Performance
Advanced Optics Designed for Edge-to-Edge Detail
The RF10-20mm F4L IS STM uses a 12-group, 16-element optical construction incorporating a large-diameter double-sided aspherical front element, Super UD and UD elements.
Canon’s optical design uses in-camera distortion correction to help maintain image quality across the frame. Canon states that even after distortion correction, image quality is comparable to or better than the EF11-24mm F4L USM.
Double-Sided Aspherical Element
The large-diameter front element uses a high-curvature double-sided aspherical design.
The large-diameter front element uses a high-curvature double-sided aspherical design.
Super UD & UD Elements
The optical arrangement is designed to maintain high image quality from edge to edge.
The optical arrangement is designed to maintain high image quality from edge to edge.
In-Camera Distortion Correction
The lens is designed around electronic correction to support its compact ultra-wide optical design.
The lens is designed around electronic correction to support its compact ultra-wide optical design.
Edge-to-Edge Quality
Canon’s design emphasis is on maintaining image quality across the exceptionally wide frame.
Canon’s design emphasis is on maintaining image quality across the exceptionally wide frame.
Coatings
SWC and ASC Help Control Ghosting and Flare
The RF10-20mm F4L IS STM incorporates Subwavelength Structure Coating (SWC) and Air Sphere Coating (ASC). Canon states that these coatings provide a higher anti-reflective effect than common vapour-deposit coatings and significantly reduce ghosting.
This is particularly relevant to ultra-wide photography, where strong light sources can frequently appear within or near the frame.
SWC
Subwavelength Structure Coating helps reduce unwanted reflections and ghosting.
Subwavelength Structure Coating helps reduce unwanted reflections and ghosting.
ASC
Air Sphere Coating provides additional anti-reflective performance.
Air Sphere Coating provides additional anti-reflective performance.
Strong Light Sources
Useful when compositions include bright skies, lamps or other intense sources of light.
Useful when compositions include bright skies, lamps or other intense sources of light.
Autofocus & Video
Leadscrew-Type STM for Fast, Accurate and Quiet AF
The RF10-20mm F4L IS STM uses a leadscrew-type STM autofocus system with position sensors. Canon states that the lens stroke has been optimised to be as short as possible to achieve rapid and precise autofocus while contributing to a more compact lens design.
The smooth and quiet AF operation also makes the lens suitable for video recording, where focus noise can be distracting.
Fast AF
The short-optimised lens stroke supports rapid autofocus operation.
The short-optimised lens stroke supports rapid autofocus operation.
Accurate AF
Position sensors contribute to precise focus operation.
Position sensors contribute to precise focus operation.
Quiet Video AF
STM operation is designed to remain smooth and quiet during movie recording.
STM operation is designed to remain smooth and quiet during movie recording.
Image Stabilisation
Up to 5 Stops Optical IS and Up to 6 Stops with Compatible Cameras
The RF10-20mm F4L IS STM features an in-lens Optical Image Stabilizer providing up to 5 stops of stabilisation.
When paired with compatible cameras, Canon specifies up to 6 stops of effectiveness. This makes the lens particularly useful when shooting handheld in situations where a tripod is not practical.
Handheld Night Scenes
Stabilisation can help when photographing low-light environments without a tripod.
Stabilisation can help when photographing low-light environments without a tripod.
Travel
Work handheld while exploring locations where carrying a tripod is inconvenient.
Work handheld while exploring locations where carrying a tripod is inconvenient.
Interior Photography
Additional stabilisation can help maintain slower handheld shutter speeds.
Additional stabilisation can help maintain slower handheld shutter speeds.
Compatible Cameras
The stated maximum increases to 6 stops when used with compatible camera bodies.
The stated maximum increases to 6 stops when used with compatible camera bodies.
Important: The 6-stop figure is specified by Canon when the lens is paired with compatible cameras.
Portability & Build
An Ultra-Wide L Lens Without the Traditional Bulk
Despite its extremely wide 10mm starting point, the RF10-20mm F4L IS STM weighs approximately 570g and measures approximately 83.7 × 112.0mm.
Canon states that it is approximately 15% shorter and weighs less than half of the EF11-24mm F4L USM. The lens can also fit into a small bag while remaining attached to the camera.
570g
A relatively compact weight for an ultra-wide full-frame L-series zoom.
A relatively compact weight for an ultra-wide full-frame L-series zoom.
112mm Length
The compact dimensions make it easier to carry than earlier extreme ultra-wide zoom designs.
The compact dimensions make it easier to carry than earlier extreme ultra-wide zoom designs.
Small-Bag Friendly
Canon states that the lens can fit into a small bag while attached to the camera.
Canon states that the lens can fit into a small bag while attached to the camera.
L-Series Construction
The lens combines portability with Canon’s L-series optical and environmental design approach.
The lens combines portability with Canon’s L-series optical and environmental design approach.
Protection & Handling
Dust- and Drip-Resistant Construction with Fluorine Coating
The RF10-20mm F4L IS STM features a dust- and drip-resistant construction, with sealing applied to crucial parts of the lens.
The front element also receives a fluorine coating designed to help repel oil and water, making the front surface easier to clean.
Dust & Drip Resistance
Sealing is applied to crucial areas of the lens construction.
Sealing is applied to crucial areas of the lens construction.
Fluorine Coating
The front element helps repel oil and water for easier cleaning.
The front element helps repel oil and water for easier cleaning.
Outdoor Shooting
The protective design is useful for photographers working in demanding environments.
The protective design is useful for photographers working in demanding environments.

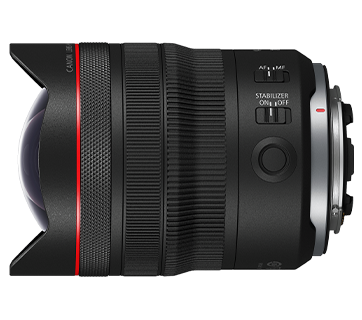

Lens Controls
Customisable Lens Function Button and Rear Gelatin Filter Holder
A customisable Lens Function button provides quick access to a variety of camera functions related to autofocus, exposure, connectivity and more.
Because the front element is extremely wide, the lens uses a rear gelatin filter holder rather than a conventional screw-in front filter system. This allows photographers to experiment with ND and coloured filters as part of the rear-mounted filter workflow.
Lens Function Button
Customise quick access to supported AF, exposure, connectivity and other functions.
Customise quick access to supported AF, exposure, connectivity and other functions.
Rear Gelatin Filter
Supports creative filter use through the rear filter holder.
Supports creative filter use through the rear filter holder.
ND Filters
Rear gelatin ND filters can be used for selected long-exposure and video applications.
Rear gelatin ND filters can be used for selected long-exposure and video applications.
Creative Colour Filters
The rear filter system can also accommodate coloured gelatin filters.
The rear filter system can also accommodate coloured gelatin filters.
Who Is It For?
Where the Canon RF10-20mm F4L IS STM Fits Best
Architecture
The extremely wide field of view helps capture large buildings and architectural interiors from constrained shooting positions.
Interior Photography
The 10-20mm range is particularly useful when the photographer cannot physically move far enough away from the subject.
Astrophotography
The broad field of view allows large portions of the night sky to be included alongside foreground subjects.
Travel Photography
The compact L-series design provides a dramatic ultra-wide perspective without the bulk of some older extreme wide-angle zooms.
Video Production
Quiet STM autofocus, Optical IS and the ultra-wide field of view make it useful for moving-camera and environmental video work.
Build Your RF Kit
Explore Related Canon RF Ultra-Wide and Wide-Angle Lenses
The RF10-20mm occupies an extreme ultra-wide position in the Canon RF range. Other lenses can provide different combinations of focal length, aperture, zoom range, low-light performance and portability.
Canon RF 7-14mm F2.8-3.5L Fisheye STM
A specialised fisheye option for photographers and creators looking for an even more distinctive ultra-wide visual character.
Canon RF 14-35mm F4L IS USM
A broader-range wide-angle L-series zoom that starts at 14mm and extends to 35mm for more conventional wide-angle and standard framing.
Canon RF 15-30mm F4.5-6.3 IS STM
A compact wide-angle zoom providing a more extended focal range for photographers who want a lightweight everyday wide-angle option.
Canon RF 16-28mm F2.8 IS STM
A constant-F2.8 wide-angle zoom for users who want a brighter aperture and a more conventional ultra-wide-to-wide focal range.
Canon RF 16mm F2.8 STM
A compact wide-angle prime for photographers who prefer a fixed focal length and lightweight setup.
Canon RF 20mm F1.4L VCM
A wide-angle L-series prime offering a substantially brighter aperture for applications where low-light capability and subject separation are priorities.
Canon RF Wide-Angle Comparison
RF10-20mm vs Other Canon RF Wide-Angle Options
The RF10-20mm is distinguished primarily by its extremely wide 10mm starting point. The comparison below shows how several supplied Canon RF options differ in focal range and design emphasis.
| Feature | RF10-20mm F4L IS STM | RF14-35mm F4L IS USM | RF15-30mm F4.5-6.3 IS STM | RF16-28mm F2.8 IS STM |
|---|---|---|---|---|
| Focal Range | 10-20mm | 14-35mm | 15-30mm | 16-28mm |
| Maximum Aperture | F4 | F4 | F4.5-6.3 | F2.8 |
| Optical IS | Up to 5 stops | IS | IS | IS |
| Primary Perspective | Extreme ultra-wide | Wide-angle zoom | Compact wide-angle zoom | Bright ultra-wide zoom |
| Lens Class | L-series | L-series | RF compact zoom | RF compact zoom |
Complete Wide-Angle Setup
Build a Canon RF Ultra-Wide Photography Kit
The RF10-20mm can serve as a specialised ultra-wide lens within a larger RF system. Pairing it with a standard zoom or telephoto lens creates a kit that covers substantially more perspectives without requiring one lens to perform every role.
1
RF10-20mm F4L IS STM
Extreme ultra-wide perspective
RF10-20mm F4L IS STM
Extreme ultra-wide perspective
2
Standard Zoom
Everyday and general-purpose framing
Standard Zoom
Everyday and general-purpose framing
3
Rear Gelatin Filters
ND and creative filter options
Rear Gelatin Filters
ND and creative filter options
4
Tripod or Support
Stable architecture and landscape shooting
Tripod or Support
Stable architecture and landscape shooting
Buying Considerations
What to Consider Before Buying the RF10-20mm F4L IS STM
Know the Perspective
A 10mm full-frame field of view is dramatically wider than conventional wide-angle lenses. This makes the lens particularly specialised for photographers who intentionally want an expansive perspective rather than simply a general-purpose zoom.
- Choose it when an extremely wide 10mm perspective is important.
- Consider it for landscapes, architecture and interior photography.
- The constant F4 aperture provides consistent maximum aperture across the zoom range.
- Optical IS provides up to 5 stops of stabilisation.
- Compatible cameras can provide up to 6 stops of stabilisation.
- Its 570g weight balances extreme wide-angle capability with portability.
- It uses a rear gelatin filter holder rather than a conventional front filter thread.
- Dust- and drip-resistant construction supports demanding outdoor use.
- For a longer wide-angle range, compare the RF14-35mm F4L IS USM.
- For a brighter F2.8 wide-angle zoom, consider the RF16-28mm F2.8 IS STM.
Technical Reference
Canon RF10-20mm F4L IS STM Full Specifications
The specifications below follow the Canon product information supplied for the RF10-20mm F4L IS STM.
Optical & Focusing
| Focal Length | 10-20mm |
|---|---|
| Maximum Aperture | F4 |
| Angle of View — Diagonal | 130°25′ – 94°00′ |
| Angle of View — Horizontal | 121°55′ – 84°00′ |
| Angle of View — Vertical | 100°25′ – 62°00′ |
| Closest Focusing Distance | 0.25m / 0.82ft |
| Lens Construction | 12 groups, 16 elements |
| Drive System | Leadscrew-type STM + Position Sensors |
| Maximum Magnification | 0.06x at 10mm 0.12x at 20mm |
| Minimum Aperture | F22 |
| Diaphragm Blades | 9 |
Dimensions & Weight
| Diameter × Length | 83.7 × 112.0mm |
|---|---|
| Weight | Approx. 570g |
| Distance Scale | – |
| Filter Size | Uses rear gelatin filter holder |
Image Stabilisation & Protection
| Optical Image Stabilizer | Up to 5 stops |
|---|---|
| Compatible Camera Stabilisation | Up to 6 stops |
| Anti-dust & Moisture | Yes — dust- and drip-resistant construction |
| Front Element Coating | Fluorine coating |
Accessories & Controls
| Lens Cap | Lens Cap 10-20 & Lens Dust Cap RF — included |
|---|---|
| Lens Hood | – |
| Lens Bag | LP1219 — included |
| Lens Function Button | Customisable |
| Rear Filter System | Rear gelatin filter holder |
Filter note: The supplied Canon specification lists a rear gelatin filter holder rather than a conventional front filter size.
IS note: Canon specifies up to 5 stops from the in-lens Optical Image Stabilizer and up to 6 stops when paired with compatible cameras.
Frequently Asked Questions
Canon RF10-20mm F4L IS STM FAQ
What is the Canon RF10-20mm F4L IS STM?
It is an ultra-wide full-frame RF zoom lens covering 10-20mm with a constant F4 maximum aperture and Canon L-series optical design.
What makes the RF10-20mm different from other Canon wide-angle lenses?
Its defining characteristic is the extremely wide 10mm starting point. Canon describes it as its widest interchangeable lens for cameras compatible with a 35mm full-frame sensor, excluding fisheye lenses, based on its stated research date.
How much does the RF10-20mm F4L IS STM weigh?
The lens weighs approximately 570g.
How much image stabilisation does it provide?
The in-lens Optical Image Stabilizer provides up to 5 stops. Canon specifies up to 6 stops when the lens is paired with compatible cameras.
Does the RF10-20mm use autofocus?
Yes. It uses a leadscrew-type STM autofocus system with position sensors for fast and accurate focusing.
Is the RF10-20mm good for video?
Canon’s quiet and smooth STM autofocus makes the lens suitable for video recording. Its ultra-wide field of view and image stabilisation can also be useful for moving-camera and environmental video work.
What filter size does the RF10-20mm use?
The lens uses a rear gelatin filter holder rather than a conventional screw-in front filter system.
Is the Canon RF10-20mm weather resistant?
Canon specifies a dust- and drip-resistant construction with sealing applied to crucial parts of the lens.
Does the lens have a fluorine coating?
Yes. The front element has a fluorine coating designed to help repel oil and water and make cleaning easier.
What is the closest focusing distance?
The closest focusing distance specified by Canon is 0.25m / 0.82ft.
Final Thoughts
A Remarkably Wide L-Series Zoom for Expansive Perspectives
The Canon RF10-20mm F4L IS STM is built around an unusually broad perspective. Its 10mm ultra-wide starting point gives landscape, architecture, interior and creative photographers a field of view that conventional wide-angle zooms cannot match.
At the same time, Canon has combined this extreme perspective with a constant F4 aperture, L-series optical construction, Optical Image Stabilization, quiet STM autofocus, dust- and drip-resistant construction and a 570g body. The result is a specialised ultra-wide zoom designed to deliver an expansive viewpoint without the size traditionally associated with this class of lens.
